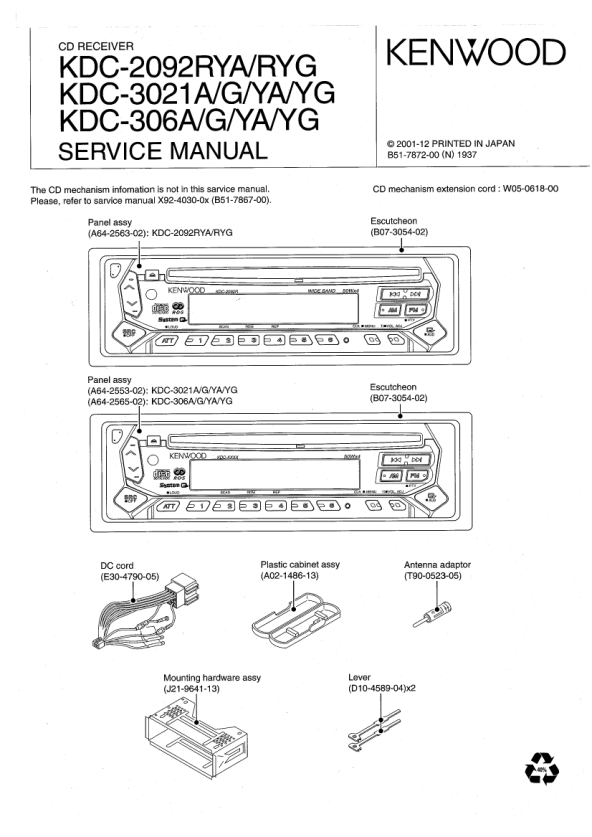

CD RECEIVER
KDC-2092RYA/RYG KDC-3021A/G/YA/YG KDC-306A/G/YA/YG
SERVICE MANUAL
The CD mechanism infomation is not in this sarvice manual. Please, refer to sarvice manual X92-4030-0x (B51-7867-00). Panel assy (A64-2563-02): KDC-2092RYA/RYG © 2001-12 PRINTED IN JAPAN B51-7872-00 (N) 1937 CD mechanism extension cord : W05-0618-00
Escutcheon (B07-3054-02)
KDC-2092R
COMPACT DIGITAL AUDIO
WIDE BAND
50Wx4
PTY LOUD SCAN RDM REP CLK MENU TI VOL. ADJ
OFF
AUD
Panel assy (A64-2553-02): KDC-3021A/G/YA/YG (A64-2565-02): KDC-306A/G/YA/YG
Escutcheon (B07-3054-02)
KDC-XXXX
COMPACT DIGITAL AUDIO
50Wx4
PTY LOUD SCAN RDM REP CLK MENU TI VOL. ADJ
OFF
AUD
DC cord (E30-4790-05)
Plastic cabinet assy (A02-1486-13)
Antenna adaptor (T90-0523-05)
Mounting hardware assy (J21-9641-13)
Lever (D10-4589-04)x2
|
|
|
> |
|
