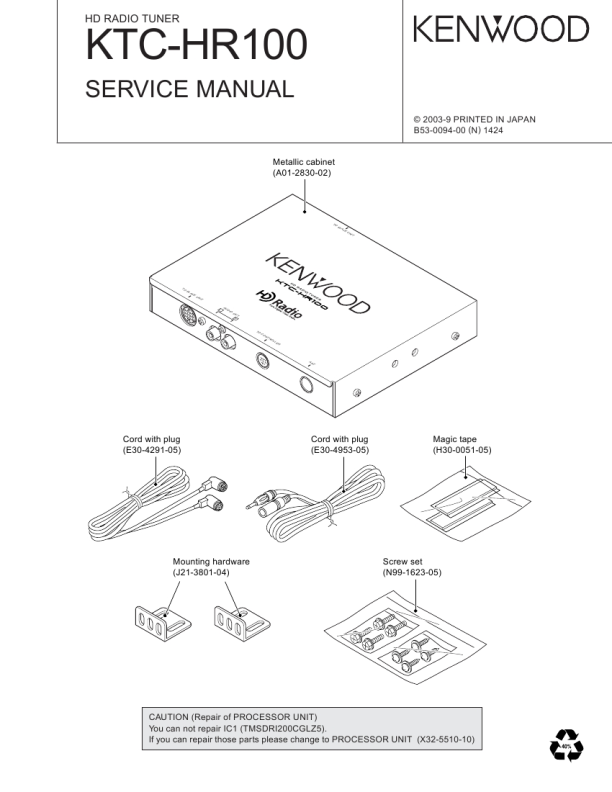

KTC-HR100
SPECIFICATIONS
Analog FM tuner section
Frequency range (200kHz space) ........................................................... 87.9MHz~107.9MHz Usable sensitivity (S/N=30dB) .................................................................. 9.3dBf (0.8µV/75�) Quieting Sensitivity (S/N=50dB) .............................................................. 15.2dBf (1.6µV/75�) Frequency response (±3dB) ................................................................................ 30Hz~15kHz Signal to Noise ratio (MONO) ......................................................................................... 70dB Selectivity (±400kHz) ................................................................................................... �80dB Stereo separation (1kHz) ................................................................................................ 40dB
Digital FM tuner section
Frequency range (200kHz space) ............................................................ 87.9MHz~107.9MHz Frequency response (±3dB) ................................................................................. 30Hz~15kHz Signal to Noise ratio (STEREO) ....................................................................................... 70dB
Analog AM tuner section
Frequency range (10kHz space) .................................................................. 530kHz~1700kHz Usable sensitivity (S/N=20dB) .......................................................................... 28dBµ (25µV)
Digital AM tuner section
Frequency range (10kHz space) .................................................................. 530kHz~1700kHz Frequency response (±3dB) ................................................................................. 30Hz~15kHz Signal to Noise ratio (STEREO) ....................................................................................... 70dB
General
Operating voltage .......................................................................... 14.4 V (11~16 V allowable) Current consumption .................................................................................................... 500mA Operating Environment .................................................................................... -20°C ~ +70°C Installation size (W x H x D) ............................................................. 188.5 x 30.0 x 145.5 mm 7-7/16 x 1-3/16 x 5-3/4 in. Weight ............................................................................................................. 1.65 lbs (750g)
follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
