Fig. 5-3 shows the waveform timing of the 2.8 V DC-DC converter circuit.
Fig. 5-3 Waveform timing chart (When MiniDisc is operated on rechargeable lithium-ion battery) 4. Generating the REC DRIVE logic voltage 5 V is generated form the CLV circuit voltage 2.8 V by the step-up converter consisting of the REC DRIVE IC506 pin 7 [VG], L514, D502 and C565. The generated 5 V is used for the logic circuit inside IC506.
� 57 �

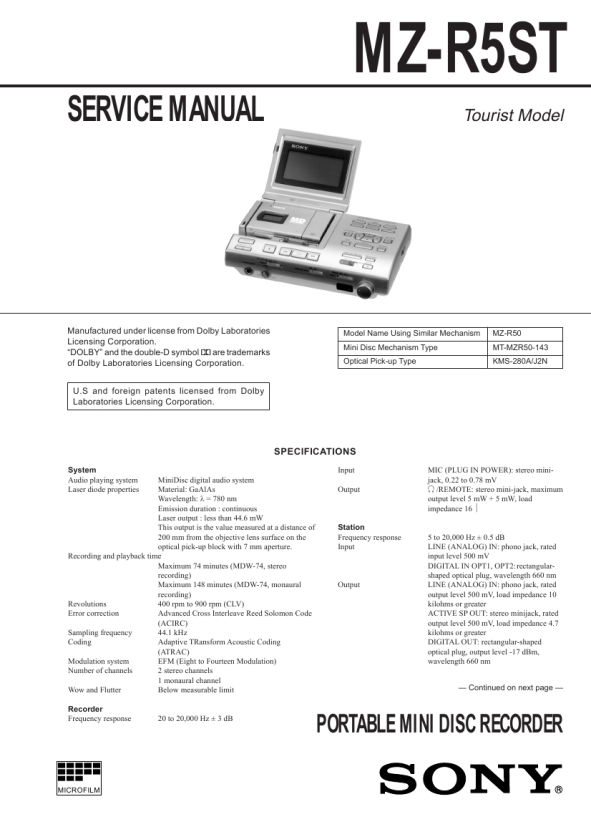

 $4.99 MZR5ST SONY
Owner's Manual Complete owner's manual in digital format. The manual will be available for download as PDF file aft…
|
