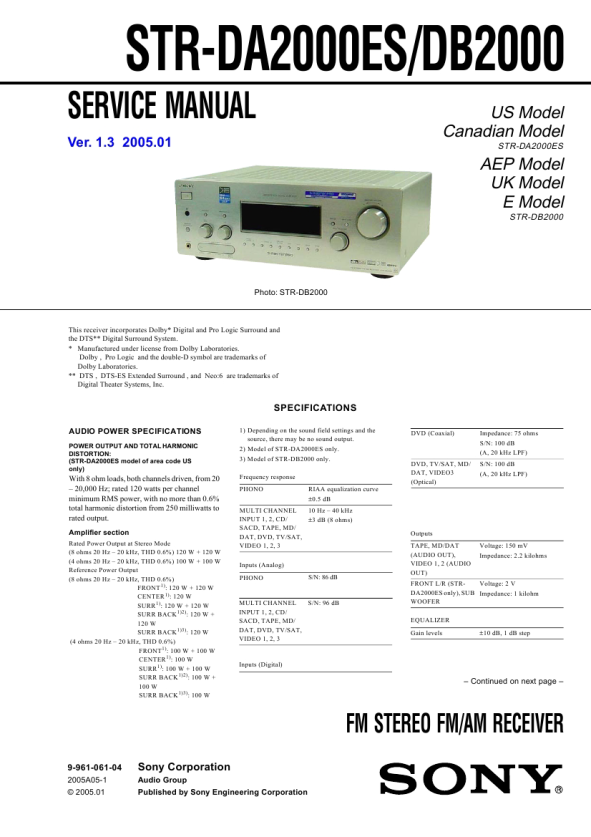

STR-DA2000ES/DB2000
Ver 1.2
ERROR MESSAGES If there is a malfunction, the display shows a code of two numbers and a message. You can check the condition of the system by message. Refer to the following table to solve the problem. messages DECODE ERROR check code 01 cause and response Appears when the signal which the receiver can not decode (example DSD-CD) is input when �DEC. PRI.� in the CUSTOM IZE menu is set to �PCM�. Set to �AUTO�. Irregular current output to the speakers. Turn off the receiver and check the speaker connection. Then turn on the power again. Be comes this display, When short current flowed with breakage of the power MOS, or when detection resistor becomes open in connection with it. The amplifier section is overheated. Turn off the receiver and check that the ventilation hole is not covered. Leave the receiver for a while and turn on the power again. The power supply section is overheated. Turn off the receiver and check that the ventilation hole is not covered. leave the receiver for a while and turn on the power again. DC between speaker terminal is detected (abnomalities such as DSD 0DATA and signal clip can be considered). Turn off the receiver and check the speaker connection. Then turn on the power again. Two defects a e considered, when current detection of a switching power supply operated by the super fluous speaker, +B power supply shut down or when the power MOS broke and +B line short. Turn off the receiver and check the speaker connection. Then turn on the power again.
PROTECTOR
11
PROTECTOR
12
PROTECTOR
13
PROTECTOR
21
PROTECTOR
22
7
|
|
|
> |
|
