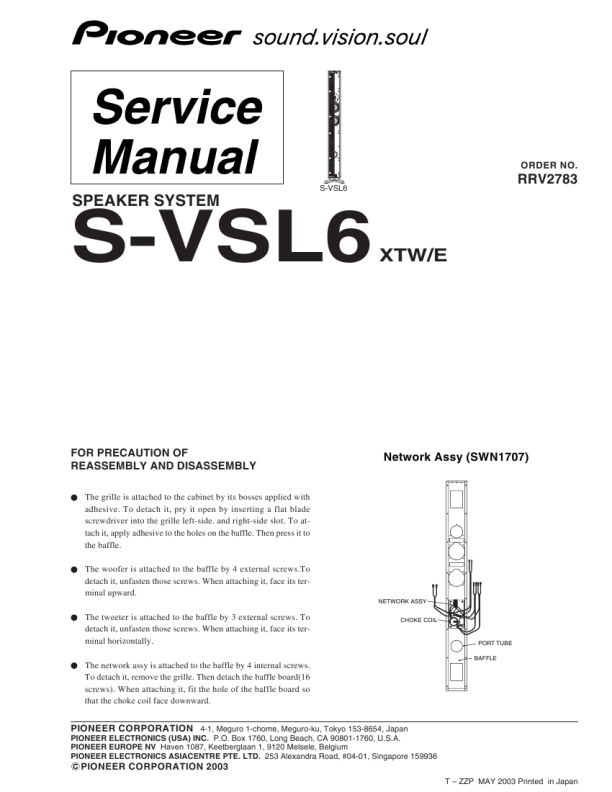

ORDER NO.
S-VSL6
RRV2783
SPEAKER SYSTEM
S-VSL6
FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY
The grille is attached to the cabinet by its bosses applied with adhesive. To detach it, pry it open by inserting a flat blade screwdriver into the grille left-side. and right-side slot. To attach it, apply adhesive to the holes on the baffle. Then press it to the baffle. The woofer is attached to the baffle by 4 external screws.To detach it, unfasten those screws. When attaching it, face its terminal upward.
XTW/E
Network Assy (SWN1707)
NETWORK ASSY
The tweeter is attached to the baffle by 3 external screws. To detach it, unfasten those screws. When attaching it, face its terminal horizontally. The network assy is attached to the baffle by 4 internal screws. To detach it, remove the grille. Then detach the baffle board(16 screws). When attaching it, fit the hole of the baffle board so that the choke coil face downward.
CHOKE COIL
PORT TUBE BAFFLE
PIONEER CORPORATION
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2003
T � ZZP MAY 2003 Printed in Japan
|
|
|
> |
|
