Home >> KENWOOD >> TM271A Service Manual

 0 item(s) in your cart

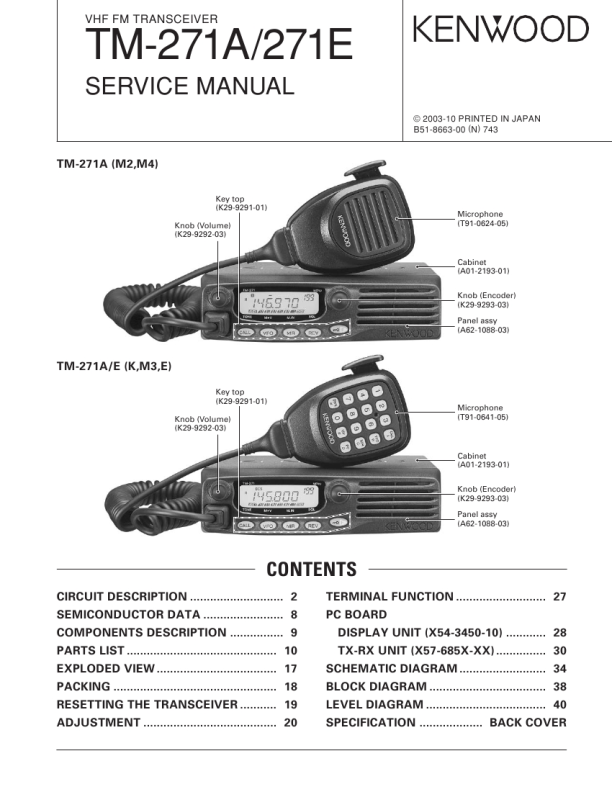

KENWOOD TM271A
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of KENWOOD TM271A Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 F203RDS PIONEER Service Manual by Bjarne Bak;
Fint forløb med levering af manualen. Kvaliteten af skanningen betegnes som middel
 7284E ALPINE Service Manual by Doug MacDonald;
I found the manual to be clear concise and complete. It was of immense assistance when removing the unit as the unit was over 22 years old and the wiring diagram was unobtainable from the manufacturer. The exploded drawings were clear as were the instructions and labels.
 KM2000 JVC Service Manual by Rashid Ahmad;
I will highly recommend this seller. They are honest, accurate, fast and responsible.
 AA-V12DPL AKAI Service Manual by Cyril Maujean;
This manual was very good & was very helpful with repairs. Always great & fast service from Owner's manual.
 SR220 MARANTZ Service Manual by Richard Murdey;
Very pleased with the quality of the scan. No complaints whatsoever.

Text excerpt from page 19 (click to view)
TM-271A/271E
RESETTING THE TRANSCEIVER
Resetting the Tansceiver
If your transceiver seems to be malfunctioning, resetting the microprocessor may solve the problem. The following 2 reset modes are available. When performing the reset, you may lose memory data and stored information. Back up or write down important data before performing the reset.

� VFO Reset
This resets the transceiver parameters excluding the DTMF Memory, the Memory channel contents, and the Call channel contents. There are two methods available for resetting the transceiver. Note : Menu No. 7 (P.VFO) and Menu No. 10 (OFFSET) return to the factory default values.

� Initial Settings
The factory defaults for the operating frequencies are as follows. Transceiver : 144.000MHz The Memory Channels have no data stored. The Weather Radio frequency (AL channel) is restored as 162.550MHz (K market model only). The Call Channel and frequency step size default values. Note : When in Channel Display Mode or while Key Lock is activated, you cannot perform VFO reset or Full reset.

� VFO Reset Method 1:
1. With the transceiver power OFF, press [VFO]+[ ] (Power). � The VFO reset confirmation message appears.

� Full Reset
This resets all transceiver parameters to the factory default values. There are two methods available for resetting the transceiver.

2. Press [VFO]. � �SURE ?� appears. � Press any key other than [VFO] to cancel. 3. Press [VFO] again to reset the transceiver. � �WAIT� appears momentarily.

� Full Reset Method 1:
1. With the transceiver power OFF, press [F]+[ ] (Power). � All indicators light momentarily, followed by the full reset confirmation message.

� VFO Reset Method 2:
1. Press [F], [MENU] and turn the Tuning control to select Menu No. 99 (RESET). 2. Press [MENU] and turn the Tuning control to select �VFO�. 3. Press [MENU]. � �SURE ?� appears.

2. Press [F]. � �SURE ?� appears. � Press any key other than [F] to cancel. 3. Press [F] again to reset the transceiver. � �WAIT� appears momentarily.

� Press any key other than [MENU] to cancel. 4. Press [MENU] to reset the transceiver.

� Full Reset Method 2:
1. Press [F], [MENU] and turn the Tuning control to select Menu No. 99 (RESET). 2. Press [MENU] and turn the Tuning control to select �FULL�. 3. Press [MENU]. � �SURE ?� appears.

� Press any key other than [MENU] to cancel. 4. Press [MENU] to reset the transceiver. � �WAIT� appears momentarily.

19
