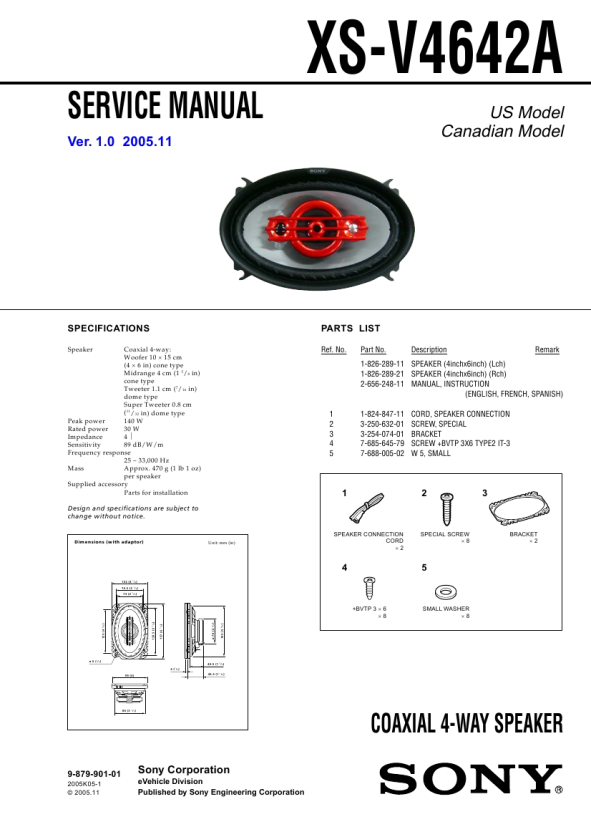

XS-V4642A
SERVICE MANUAL
Ver. 1.0 2005.11
US Model Canadian Model
SPECIFICATIONS
Coaxial 4-way: Woofer 10 � 15 cm (4 � 6 in) cone type Midrange 4 cm (1 5/8 in) cone type Tweeter 1.1 cm (7/16 in) dome type Super Tweeter 0.8 cm (11/32 in) dome type Peak power 140 W Rated power 30 W Impedance 4� Sensitivity 89 dB/W/m Frequency response 25 � 33,000 Hz Mass Approx. 470 g (1 lb 1 oz) per speaker Supplied accessory Parts for installation Design and specifications are subject to change without notice. Speaker
PARTS LIST
Ref. No. Part No. Description Remark
1-826-289-11 SPEAKER (4inchx6inch) (Lch) 1-826-289-21 SPEAKER (4inchx6inch) (Rch) 2-656-248-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH) 1 2 3 4 5 1-824-847-11 CORD, SPEAKER CONNECTION 3-250-632-01 SCREW, SPECIAL 3-254-074-01 BRACKET 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3 7-688-005-02 W 5, SMALL
1
2
3
Dimensions (with adaptor)
Unit: mm (in)
SPEAKER CONNECTION CORD �2
SPECIAL SCREW �8
BRACKET �2
4
102 (4 1/8) 76.5 (3 1/8) 73 (2 7/8)
5
+BVTP 3 � 6 �8
3 7 7
SMALL WASHER �8
133.5 (5 /8)
1
123 (4 /8)
157 (6 /4)
ø 6 (1/4) 6 (1/4) 99 (4)
40.5 (1 5/8) 46.5 (1 7/8)
86 (3 1/2)
ø 70 (2 /8)
143 (5 /4)
3
COAXIAL 4-WAY SPEAKER
9-879-901-01
2005K05-1 © 2005.11
Sony Corporation
eVehicle Division Published by Sony Engineering Corporation
|
|
|
> |
|
